Command Monitoring Station 2.0

The Command Monitoring Station 2.0 (CMS 2.0) enables a commander to monitor and record video and audio transmissions from Throwbot® 2 robots operating on channels A.2, B.2, or C.2 from up to 1,000 feet (305m) away.

The Command Monitoring Station 2.0 (CMS 2.0) enables a commander to monitor video transmissions from the Throwbot® 2 robot from up to 1,000 feet (305m) away. Additionally, the CMS 2.0 can monitor the audio transmission of a Throwbot® 2 Audio robot. By using the CMS 2.0, you can see precisely what your front line personnel see on their handheld Operator Control Units (OCUs) as they direct the movement of their robots. This real-time video lets you direct tactical and search-and-rescue operations, and provide an integrated response to any situation.

The CMS also allows you to switch from one robot frequency (channel A / A.2, B / B.2, or C / C.2) to the next so you can monitor transmissions from up to three robots. Software included with the CMS 2.0 allows you to use a computer running Windows XP™ (with SP3), Vista™, or 7, 8, and 10™ to record transmissions, and to capture and store still images as required. You can also use a standard RCA cable to display the video feed on any television or monitor. Power cables are included that allow you to run the CMS 2.0 from a standard power outlet or a 12VDC source.

Have a Question? Contact Us.

Additional Product Information

Mechanical Specifications

  • Range: Tested to 1,000ft / 305m
  • Video Resolution: 640×480
  • Input Voltage: 120/240V, 50-80Hz or 12VDC



Minimum System Requirements

  • Pentium 4 Processor, 1 GHz or faster (2.5 GHz recommended)
  • 512MB of RAM (1GB recommended)
  • Microsoft® Windows XP with SP3, Vista, or 7
  • Connection: USB 2.0 required
  • To Record: 20MB disk space (5GB recommended)

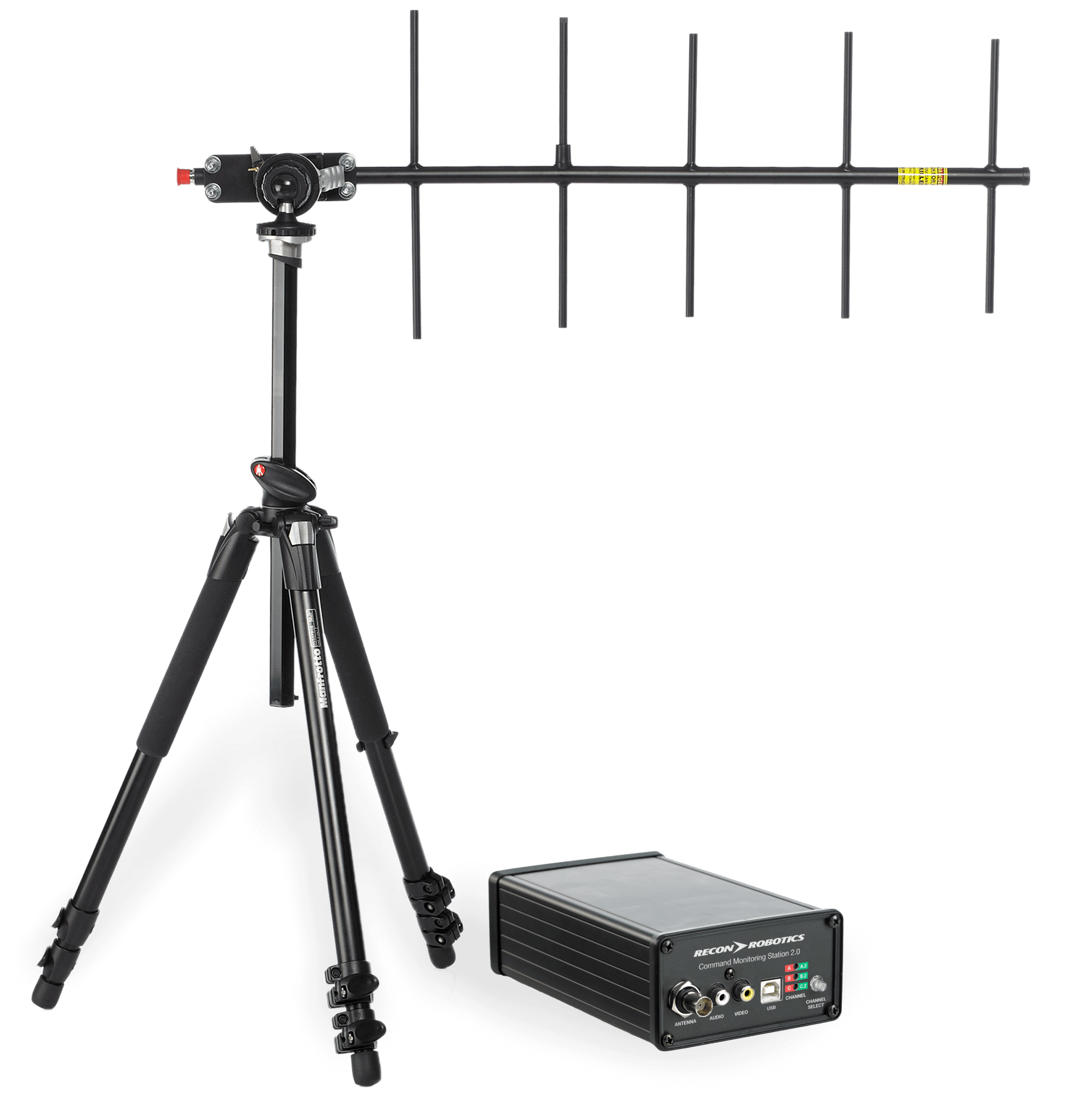

Included Components

  • CMS 2.0 Receiver
  • AC Power Cord
  • 12VDC Car Power Cord
  • High-Gain Yagi Antenna and Mounting Hardware
  • Manfrotto Tripod
  • BNC Coaxial Cable (30ft / 10m)
  • BNC Coaxial Cable (10ft / 3m)
  • USB Cable
  • CMS 2.0 Software CD-ROM
  • Nylon Carrying Case
  • User Manual



DOWNLOAD SPEC SHEET

PRODUCT IDENTIFICATION

This User Manual applies to the ReconRobotics® Command Monitoring Station 2.0 (CMS 2.0).

DOWNLOAD USER MANUAL



Request a Product Demo

REQUEST DEMO



XT SWAT Training

CMS 2.0 Subject Video

This robot does the same thing as a mirror or a camera on a pole, but it does it from 100 feet away. It provides a reactionary gap, and increased safety.

Sean Flanagan – Des Plaines, IL, SWAT
